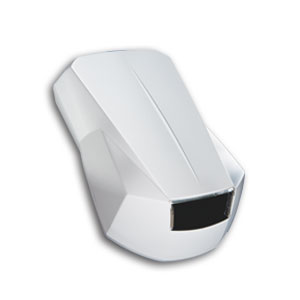

Lux-Ray LED Series

Rugged, Versatile, Sophisticated

Lux-Ray LED Series

Rugged, Versatile, Sophisticated


  • Die-cast aluminum housing, available in four finishes: dark bronze, off-white, black, and platinum gray
  • NEMA-3R Rated for indoor/outdoor wet and damp locations: -20°C to 50°C SD model
  • Wall-mount installation on various junction boxes or via rigid conduit
  • Patent-pending design for easy installation: wall-mount backplate includes electrical wire box with snap-on connector
  • Patent-pending light engine: four power LEDs with redundant inter-connections and very wide beam
  • Clear polycarbonate lens of reduced size (3'' x 1.5''), shock-absorbent and UV-resistant
  • Battery: high-temperature rated, nickel-metal hydride technology
  • Power consumption in stand-by: less than 5W
  • Self-test and diagnostic functions operated by micro-controller
  • Certified to CSA 22.2 No.141-10 and No.250.0-08 standards
  • 90 minutes run time
  • Options:
  • Cold weather: (-40°C... 30°C)
  • Forward-throw light distribution, for applications of outdoor exit discharge (OSHA 1910.36)
  • High-lumen output: 25 to 50% additional level of illumination compared to standard models
  • Dual-mode operation: normal lighting and/or emergency lighting with separate AC inputs
  • Photo-switch: dusk-to-dawn control of normal lighting
  • Remote test: infrared remote control (keyboard ordered separately)
  • Time delay: 15 minutes
